Pump and Fan

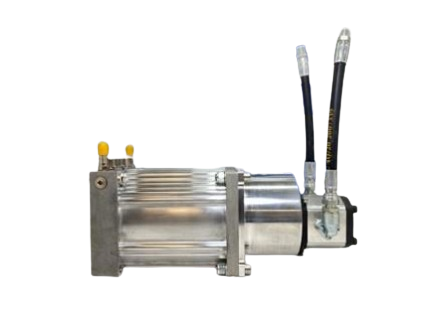

iPA-2U-WN400 + A4001
Application Examples :
Electro-hydraulic
Off-highway
Warehouse automation
Peak Power
47 kw
Continous Power
32 kw
Max SpeedΓÇï
4,000 rpm
Voltage
420 VDC
iPA-4U-WN400 + A4001
Application Examples :
Electro-hydraulic
Off-highway
Warehouse automation
Peak Power
48 kw
Continous Power
33 kw
Max SpeedΓÇï
4,000 rpm
Voltage
420 VDC
rPA-5U-WN250 and A8003
Application Examples :
Electro-hydraulic
Off-highway
Warehouse automation
Peak Power
80 kw
Continous Power
50 kw
Max SpeedΓÇï
3,000 rpm
Voltage
650 VDC
Product range
Use Point: 1000 rpm
Frame Size:
Gear Housing Width:
cc/rev:
Max Pressure (bar):
1000rpm Power:
Use Point: Max Speed
Frame Size:
Gear Housing Width:
cc/rev:
Max Pressure (bar):
Max Speed Power:
Use Point: 1000 rpm
Frame Size:
Gear Housing Width:
cc/rev:
Max Pressure (bar):
1000rpm Power:
Motor at Duty Type: Peak
Motor at Duty Type: Continuous
Motor at Duty Type: Peak
Motor at Duty Type: Continuous
Use Point: Max Speed
Frame Size:
Gear Housing Width:
cc/rev:
Max Pressure (bar):
Max Speed Power:
Motor at Duty Type: Peak
Motor at Duty Type: Continuous
Motor at Duty Type: Peak
Motor at Duty Type: Continuous
Case Studies
We create and manufacture Motor Solutions

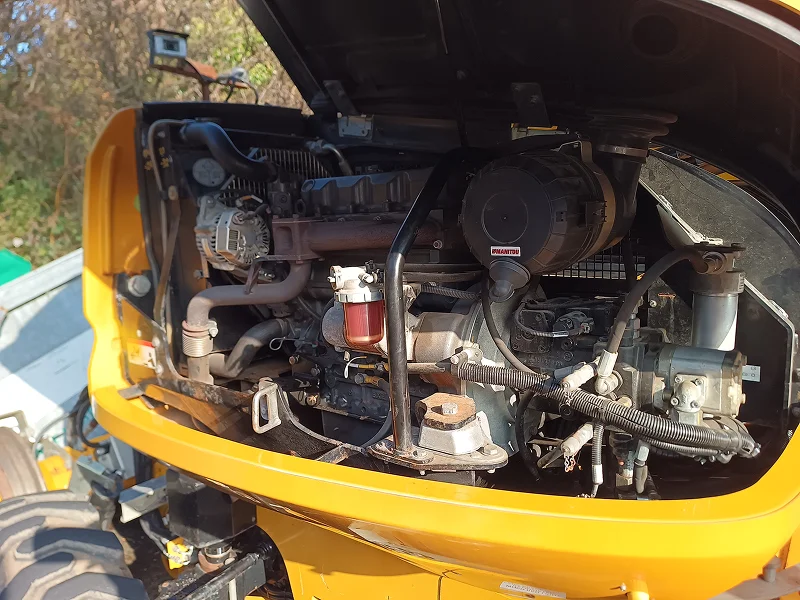

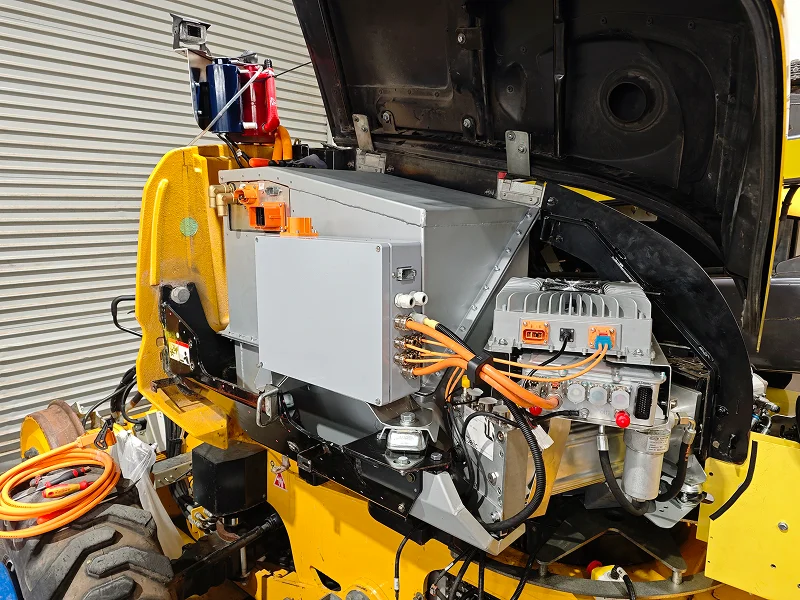

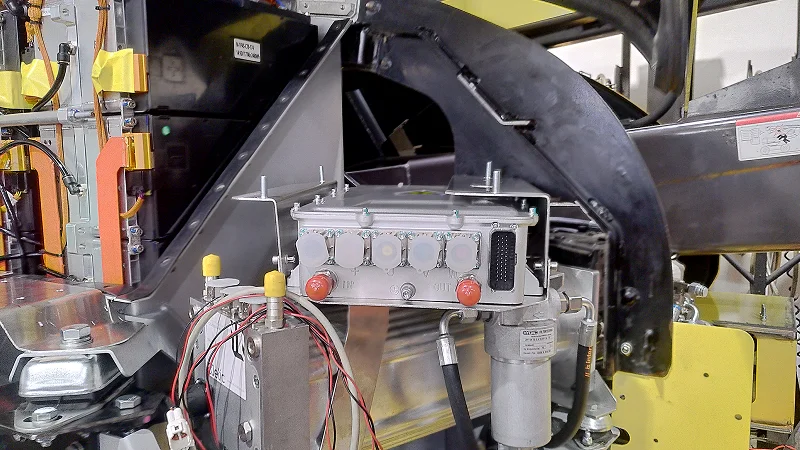

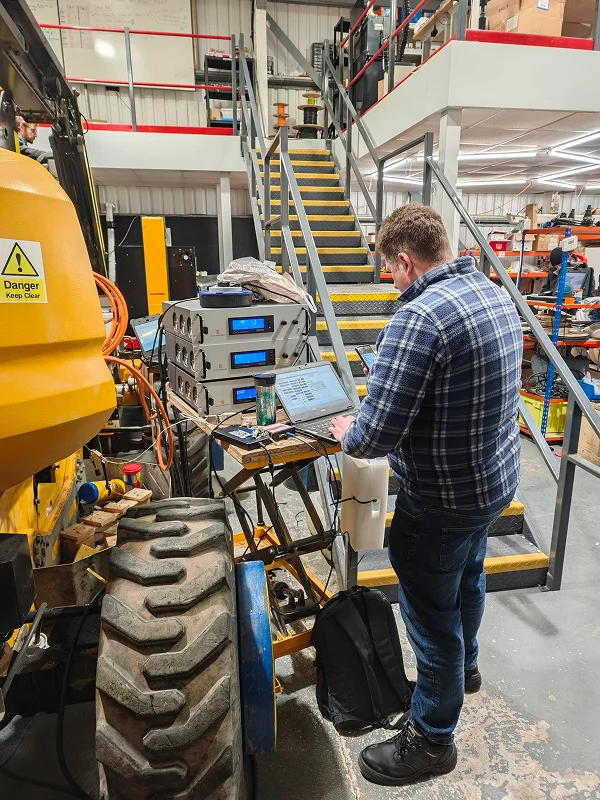

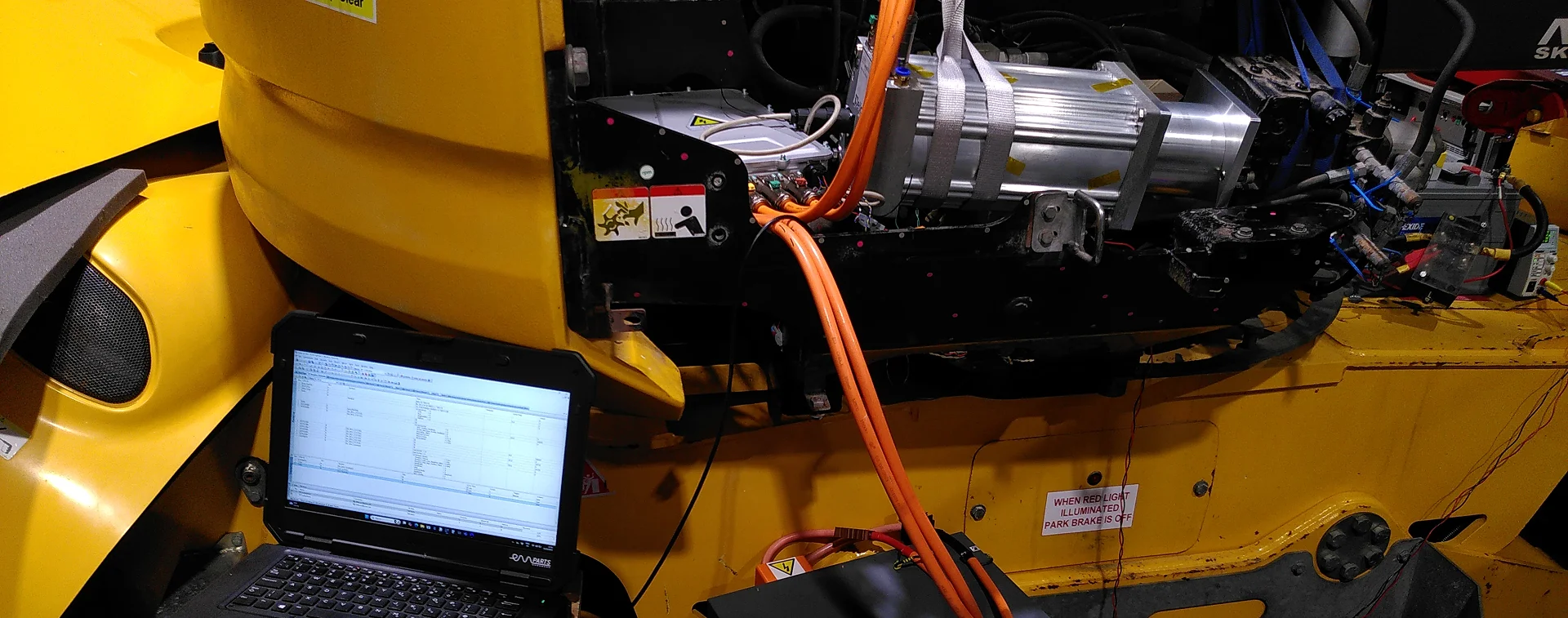

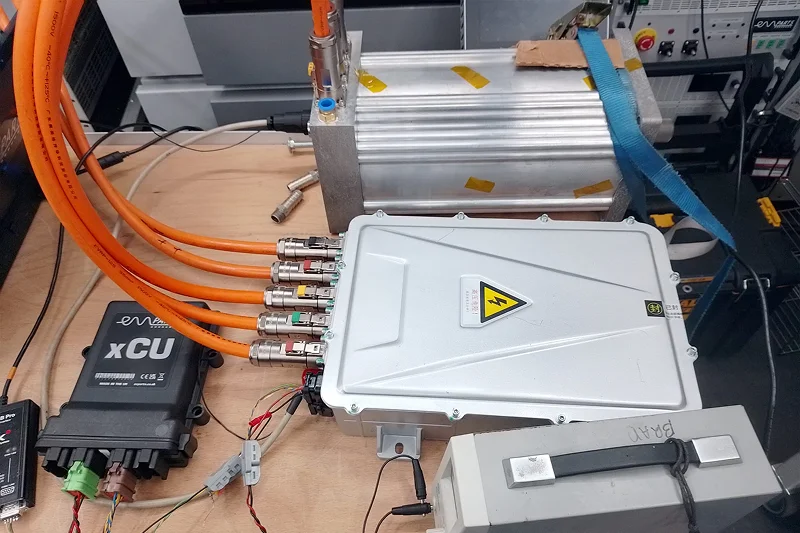

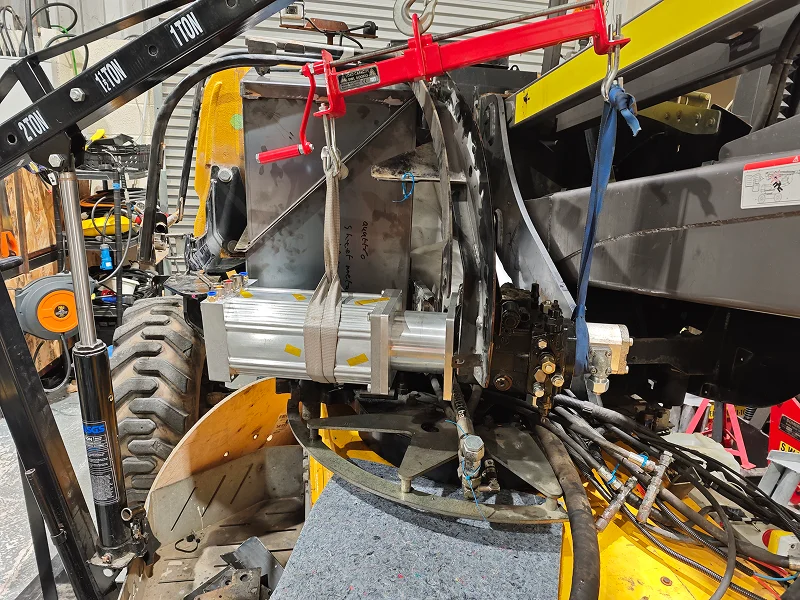

Revolutionising Aerial work platform
83dB
Integrated
design
Client
Quattro Plant Hire
Product
iPA
Multi wheeled amphibious vehicle
Dual
Motor
2 days
battery
Client
North American OEM
Product
sPAΓÇï
High Power Fan for military application
60
kW
High
Axial load
Client
North American OEM
Product
iFA
WHAT WE DO
We create and manufacture motor solutions
Technical Documentation
We work closely with Pump and Fans companies that are seeking precision and a collaborative approach.
| Motor Frame | Motor Length | Winding Number | AC / DC | Voltage (V) | Peak Torque @1000rpm (Nm) | Peak Torque @ Max Speed (Nm) | Cont. Torque @1000rpm (Nm) | Cont. Torque @ Max Speed (Nm) | Max Speed (rpm) | Peak Power @1000rpm (kW) | Peak Power @ Max Speed (kW) | Cont. Power @1000rpm (kW) | Cont. Power @ Max Speed (kW) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| sPU | 2U | WN200 | DC Battery | 48 | 91 | 23 | 13 | 8 | 4000 | 2.41 | 9.63 | 1.36 | 3.35 | Download |
| sPU | 4U | WN100 | DC Battery | 48 | 109 | 44 | 23 | 12 | 4000 | 4.61 | 18.43 | 2.41 | 5.03 | |
| iPU | 1U | WN200 | DC Battery | 48 | 107 | 26 | 33 | 16 | 4000 | 2.72 | 10.89 | 3.46 | 6.70 | |
| iPU | 2U | WN100 | DC Battery | 48 | 143 | 55 | 71 | 36 | 4000 | 5.76 | 23.04 | 7.44 | 15.08 | |
| iPU | 4U | WN050 | DC Battery | 48 | 161 | 60 | 143 | 73 | 4000 | 6.28 | 25.13 | 14.98 | 30.58 | |
| iPU | 2U | WN200 | DC Battery | 400 | 158 | 157 | 73 | 70 | 4000 | 16.44 | 65.77 | 7.64 | 29.32 | |
| iPU | 4U | WN400 | DC Battery | 400 | 325 | 108 | 148 | 78 | 4000 | 11.31 | 45.24 | 15.50 | 32.67 | Download |
| iPU | 1U | - | AC Mains | 310 | 63 | 63 | 27.5 | 27.5 | 3000 | 6.60 | 19.79 | 2.88 | 8.64 | |
| iPU | 2U | - | AC Mains | 310 | 126 | 126 | 55 | 55 | 3000 | 13.20 | 39.59 | 5.76 | 17.28 | |
| iPU | 3U | - | AC Mains | 310 | 189 | 189 | 82.5 | 82.5 | 3000 | 19.79 | 59.38 | 8.64 | 25.92 | |
| iPU | 4U | - | AC Mains | 310 | 252 | 252 | 110 | 110 | 3000 | 26.39 | 79.17 | 11.52 | 34.56 | |
| sPU | 1U | - | AC Mains | 310 | 19.8 | 19.8 | 5.9 | 5.9 | 3000 | 2.07 | 6.22 | 0.62 | 1.85 | |
| sPU | 2U | - | AC Mains | 310 | 39.6 | 39.6 | 11.8 | 11.8 | 3000 | 4.15 | 12.44 | 1.24 | 3.71 | |
| sPU | 3U | - | AC Mains | 310 | 59.4 | 59.4 | 17.7 | 17.7 | 3000 | 6.22 | 18.66 | 1.85 | 5.56 | |
| sPU | 4U | - | AC Mains | 310 | 79.2 | 79.2 | 23.6 | 23.6 | 3000 | 8.29 | 24.88 | 2.47 | 7.41 |
